1825057-7
Manufacturer:
TE Connectivity
Mfr.Part #:
1825057-7
Datasheet:
Description:

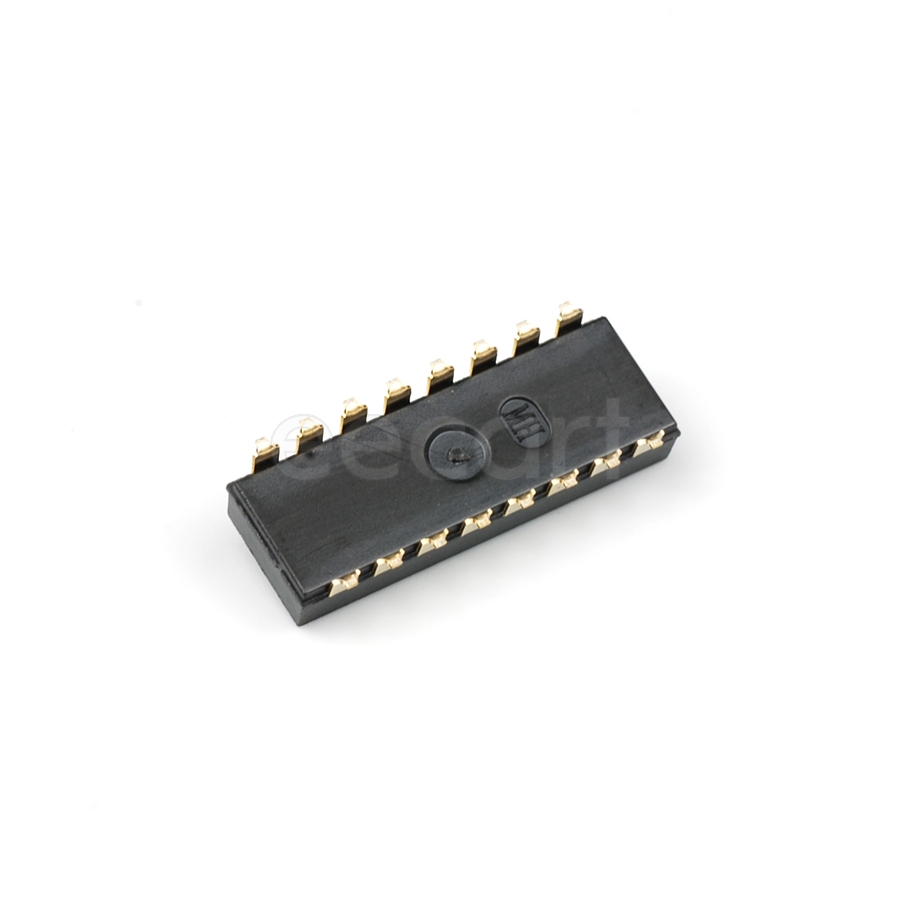

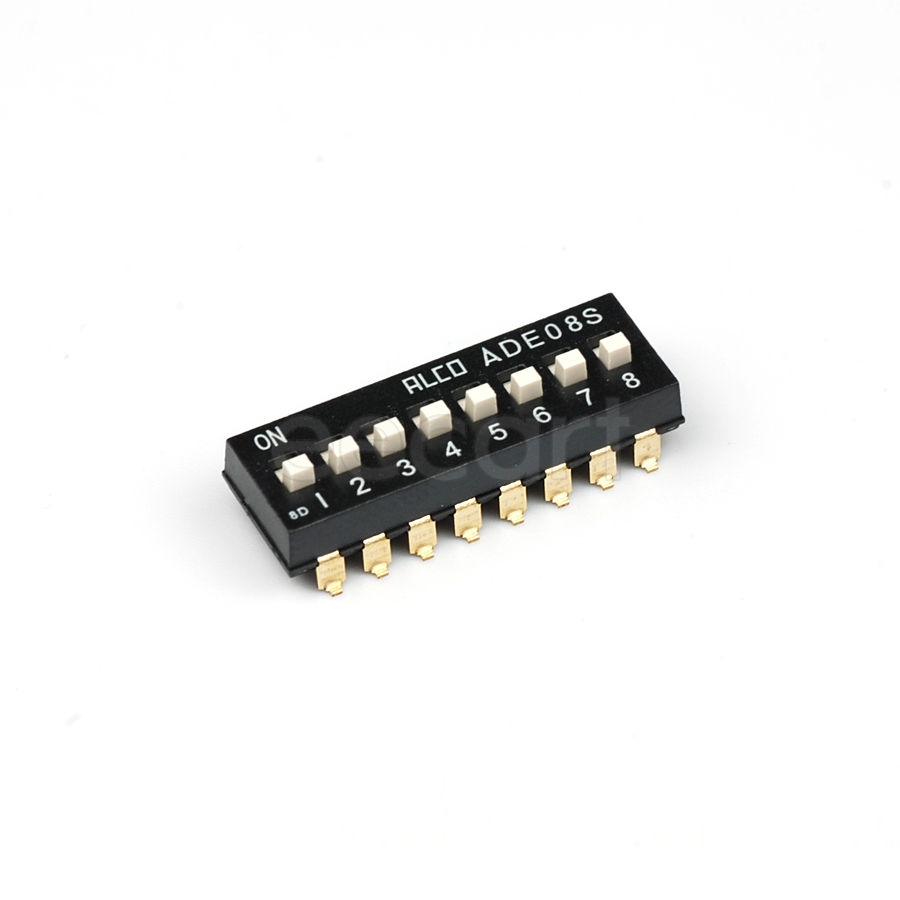

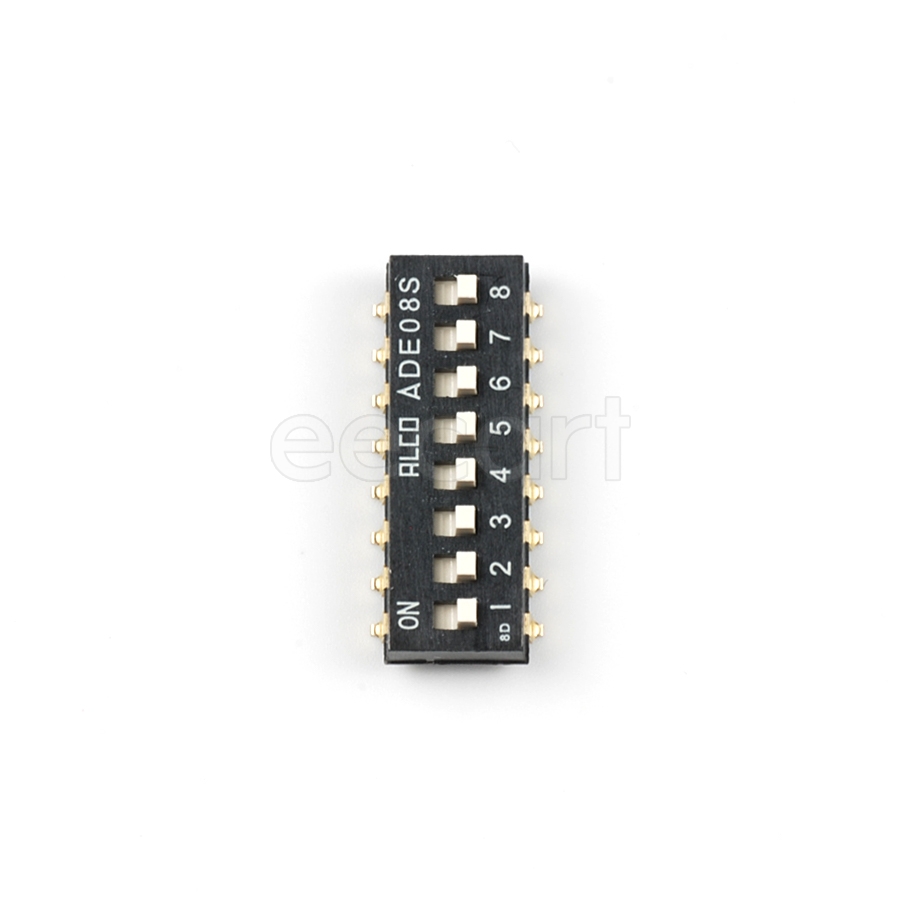

DIP Switches Through Hole SPST Number of Positions:8 Current Rating:100 mA Slide (Standard) Switch
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5 V |
| Length | 22.3 mm |
| Width | 7.5 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 8 |
| Height | 3.5052 mm |
| Circuit Type | SPST |
| Voltage Rating | 24 V |
| Depth | 8.38 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 4 mm |
| Contact Material(Contact Finish) | Gold, Silver |
| Pitch | 2.54 mm |
| Type | Switch |
| Terminal Pitch | 2.54 mm |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 24 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 8 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| ELV | Compliant |
| Actuator Length | 990 µm |
| Throw Configuration | SPST |
| Number of Positions | 8 |
| Housing Material | Polyphenylene |
| Contact Resistance | 50 mΩ |
| Electrical Life | 1 kcycles |
| Actuator Material | Polyamide |
| Contact Current Rating | 100 mA |
| Housing Color | Black |
| Actuator Type | Slide (Standard) |
| Washable | Yes |
| Switching Capacity | 400 mW |
| Life (Cycles) | 1 kCycles |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Packaging | Tube |
